Strengthening of building structures of historical masonry buildings in Syria with carbon fiber reinforced polymer (CFRP) rods and stainless steel helical rods

Introduction

Existing historical buildings, built of masonry, some of which are architectural monuments, are located in different countries for example Russia, Italy, Greece, Spain, and Syria [1–4]. Architectural monuments in Syria such as mosques, churches and temples are an important part of the architectural and cultural heritage of humankind. They are susceptible to various negative environmental influences, including earthquakes that have occurred in this country for centuries [5–7].

For strengthening and (or) seismic strengthening of buildings and structures, there are traditional methods, that is, without changing the dynamic scheme and non-traditional methods that involve changing the dynamic scheme. This article discusses only traditional methods, but with one caveat that they are innovative [6].

It is worth noting that similar buildings and structures are common all over the world, therefore, the approaches to strengthening given in this article are suitable for use everywhere in them. These historical buildings and structures were usually built of unreinforced masonry, so they are vulnerable to earthquakes and other natural and unnatural disasters [5–7].

Buildings with unreinforced stone walls are structures characterized by inadequate earthquake [8–9] behavior due to their low ductility and low energy dissipation capacity. Consequently, these structures are very vulnerable to this kind of natural phenomena and can face sudden failures that can even lead to their complete destruction.

This was observed during previous earthquakes, such as the earthquakes in Tashkent, in the USSR with a magnitude of 5.2, in 1966; in Los Angeles, USA, in 1994 with a magnitude of 6.7; in Mexico, in 2003 with a magnitude of 7.6; in Chile in 2010 with a magnitude of 8.8 and others.

Methods

One of the innovative traditional methods of strengthening and (or) seismic strengthening of buildings and structures is carbon fiber reinforced plastics (CFRP), which are polymer composite reinforced with carbon fiber materials, and are known as an alternative to the traditional steel rods for reinforcement of masonry and other building structures. They are lightweight and resistant to corrosion, as well as high tensile strength and high modulus of elasticity. These polymers are available in a variety of forms, including sheets, fabrics, and reinforcing bars (Fig. 1).

Numerous studies have shown that FRP systems are effective in increasing the shear and flexural strength of stone walls subjected to in-plane loads. The structural performance of a FRP-reinforced stone wall depends on the configuration of the reinforcement.

In recent years, external reinforcement of stone walls with composite strips and rods has become more common in many countries.

However, in different countries, there was a distrust of composite materials, which led to not considering such materials as an alternative to traditional reinforcement, and there is still little research on this issue. Therefore, this research in the article aims to contribute to the study of the behavior of these innovative materials so that they can be considered as external reinforcement for stone walls.

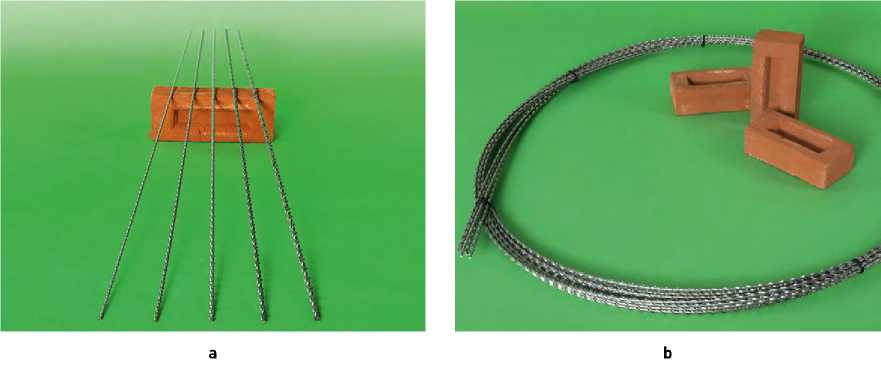

Another type of reinforcement is stainless steel screw (helical) rods (Fig. 2, a) and wires (Fig. 2, b), which can not only be used as a reinforcement for masonry joints similar to CFRP rods, but also use them as anchors for arched lintels, fastening corner walls to each other.

Severe damage or total loss of cultural heritage sites as a result of strong earthquakes has occurred throughout the history of mankind. These unexpected and inevitable events demonstrated that masonry buildings and structures are one of the most vulnerable types of structures that can be severely damaged or collapsed. Their protection is a matter of great concern to the scientific community. This concern mainly arises from the observed damage after each major earthquake, as well as the need and interest in preserving them. Therefore, the seismic resistance of buildings and structures is an important element of the preservation of such objects [5–10].

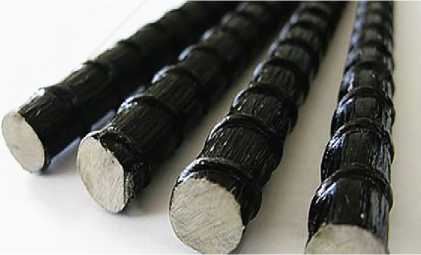

The technical characteristics of stainless steel helical rods and carbon fiber-reinforced polymer (CFRP) rods are shown in Tables 1 and 2.

Historical masonry buildings

Striking examples of historical buildings, built of masonry and at the same time being masterpieces, and monuments of architecture are the Great Mosque in Aleppo and the Al-Adiliya Mosque in Aleppo in Syria.

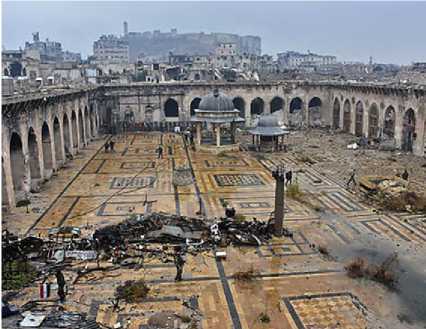

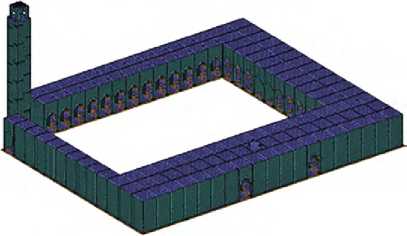

The Great Mosque of Aleppo City is one of the largest and oldest Muslim buildings of religious significance in Syria (Fig. 3, 4). The building began to be built in 715. The plan of the Great Mosque is rectangular with a rectangular courtyard; its dimensions are 105 × 78 m. On the northwest side, there is a rectangular minaret with dimensions at the base of 4.85 × 4.85 m. Galleries, columns and arches surround the courtyard. Past earthquakes and hostilities damaged the building structures of the Great Mosque of Aleppo and led to the formation of various cracks and other damage (Fig. 5). The minaret collapsed in 2013. The building was included in the UNESCO World Heritage List in 1986 [1–7, 10]. The author proposes the restoration (Fig.4) of this building using, among other things, the rods described above.

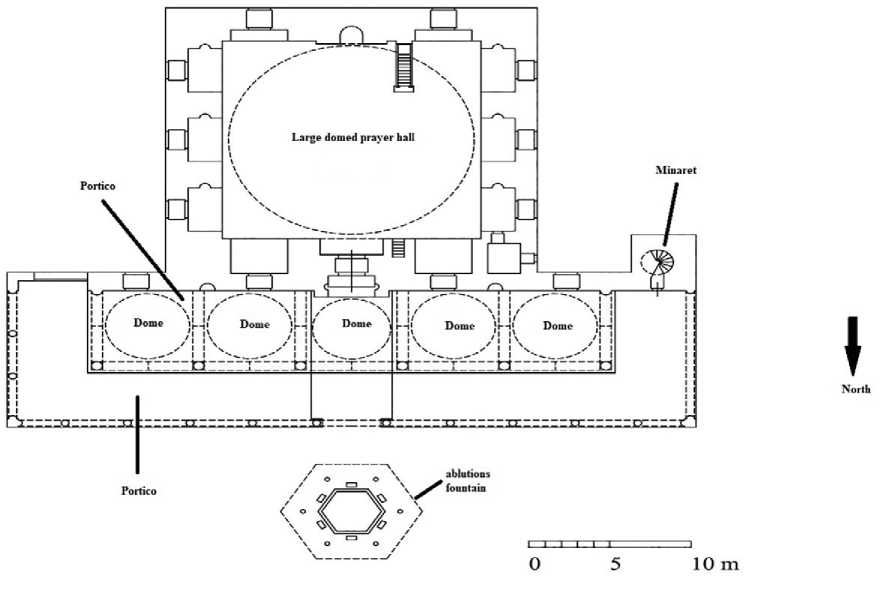

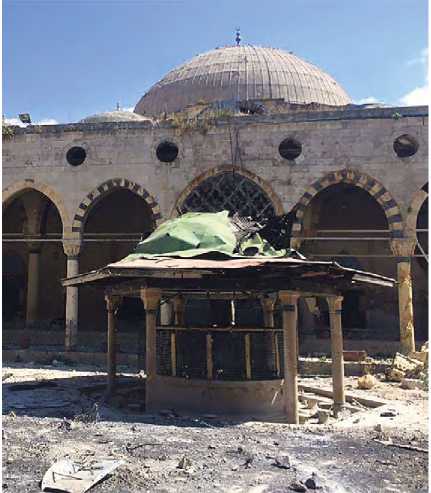

The Al-Adiliya Mosque is located in the old part of the city of Aleppo in Syria (Fig. 6), the beginning of its construction in 1557; the building is built of masonry. Its plan is square; each side is about 15.6 m long (Fig. 7). The building has galleries, columns and arches. The mosque has a rectangular courtyard with two east and west entrances. In the courtyard, there is a domed fountain for ablution of believers. In the west of the mosque there is a cylindrical minaret with a height of about 40 m. The mosque was built in the Ottoman style of architecture. It has one large spherical dome and five small ones. The building of the mosque was damaged (Fig. 8) by past earthquakes and hostilities [1–7, 10].

Masonry reinforcement technology

The technology consists in using screw (helical) rods made of stainless steel. This method is a modern and effective way to strengthening the masonry against cracks. It has recently been used in Europe to strengthen masonry when cracks appear [11][12].

The tensile strength of the material of such rods is twice that of conventional reinforce-
ment.

Stainless steel helical rods have a small diameter, therefore, when using them, small grooves and holes are required, which in turn almost does not affect the strength of the structure being repaired and does not require a large consumption of mortar for the joints.

Instead of stainless steel helical rods (bars) to strengthen masonry, including damaged ones, you can use carbon fiber reinforced polymer (CFRP) rods, which are composite material that is more resistant to corrosion than stainless steel. This reinforcement method is called Near Surface Mounted (NSM) FRP Technique or NSM Technique [13][14].

Technology “Stitching Cracked Walls”

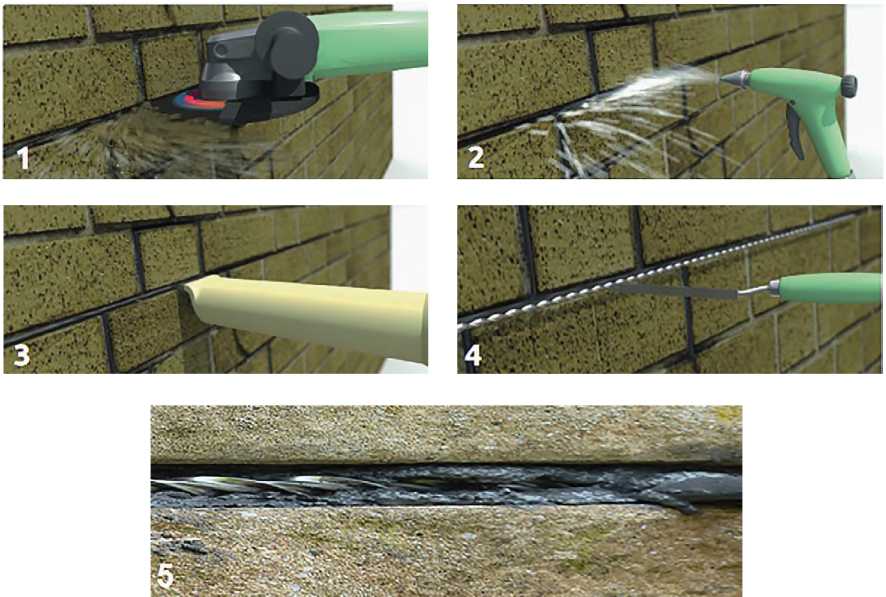

The installation of the rods is carried out as follows:

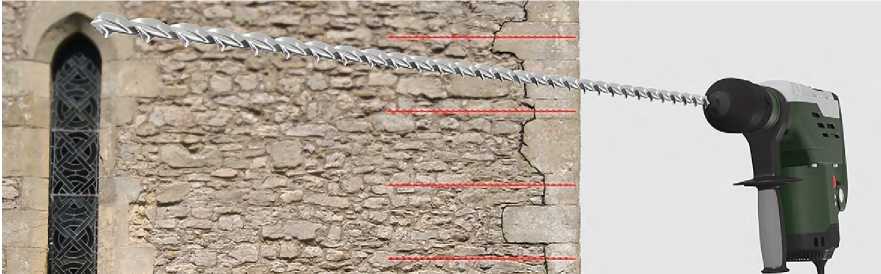

• using acircular saw, cut the groove in the most horizontal mortar seam of the masonry, (it is also allowed to cut the groove outside the horizontal mortar joint of the masonry, that is, in the masonry material itself);
• the depth ofthe groove is about 60 mm (or half of a stone brick), its minimum width is 10 mm;
• the groove should becleaned with water and dried with compressed air, followed by the injection of a binder solution into the groove with a pistol;
• then the rod ismounted in the groove;

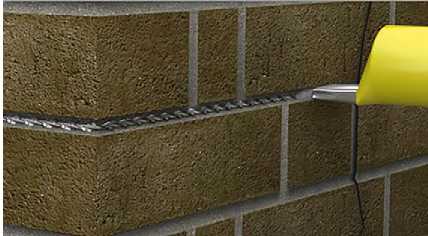

• abinder solution is pumped over the rod to fix it and the finishing work is carried out (Fig. 9).

Such technology called “Stitching Cracked Walls” in Europe.

Strengthening masonry in the presence of cracks

Follow the same steps listed earlier.

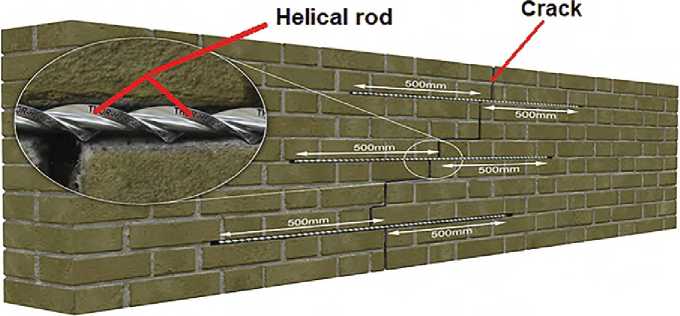

The rod is installed so that it spans 500 mm on each side cracks (Fig. 10).

Injection of cracks with mortar is carried out, then finishing works and painting are carried out if necessary.

Strengthening and anchoring lintels in the presence of cracks

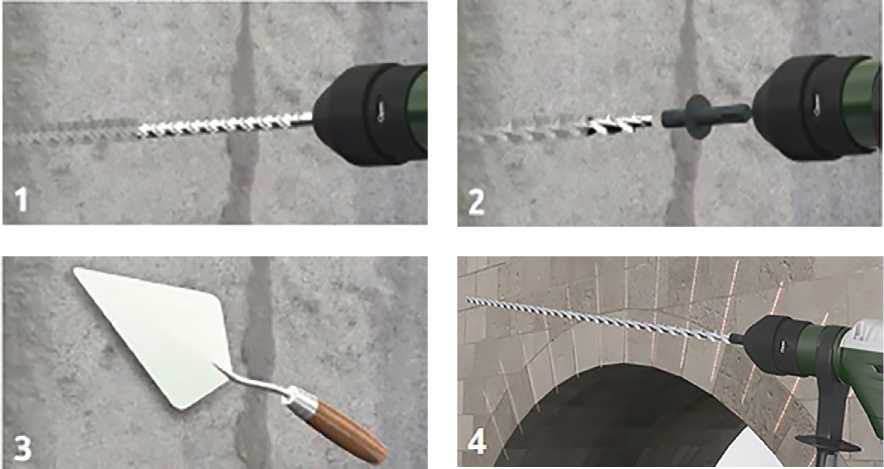

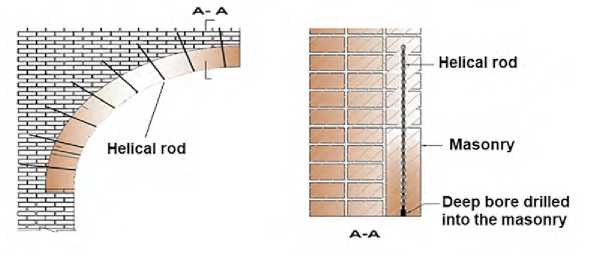

It is carried out with the help of stainless steel screw rods (helical bars) which are screwed into the pre-prepared holes in the body of regular and arched lintels (Figs. 11, 12).

Strengthening and anchoring of stone facades in the presence of cracks

Stainless steel helical rods are screwed into pre-prepared holes in the body of the facade masonry (Fig. 13).

Strengthening and anchoring corner walls in the presence of cracks

To strengthen the corners of the walls (stitching cracks at corner), you can use a stainless steel wire bent in the shape of right angle (Fig. 14).

It is carried out with the help of stainless steel screw rods that are screwed into pre-prepared holes in the body of the wall masonry (Fig. 15).

Such helical rods are produced in various European countries. For example, in Russia they are produced by company GYDROZO. They are available in diameters of 5, 6, 7, 8 and 9 mm, in standard lengths of 1 and 2 m.

The carbon fiber reinforced polymer (CFRP) rods are produced, for example, by the Swiss company Sika.

Calculation algorithm

The helical rods and carbon fiber reinforced polymer (CFRP) rods are used to absorb tensile forces that exceed acceptable values, which affects the formation and development of cracks in masonry [15–19].

To calculate the reinforcement of masonry with these kinds of rods, a number of tasks should be performed:

• determine the bearing capacity ofthe masonry of the building structures of the reinforced building;
• highlight weak zones and load values that exceed the design stresses;
• determine the direction ofaction of the loads;
• calculate the number ofrods that are required to accommodate the excess loads [15].

The method of calculating masonry building structures, reinforced with carbon fiber reinforced polymer (CFRP) rods, or stainless steel helical rods under central compression is based on calculation methods from SP.15.13330.2012 «Stone and reinforced stone structures» [16], that is, to calculate the elements of stone building structures under central compression [20], reinforced with external rods, made of CFRP or helical rods made of stainless steel, according to the formula:

 (1)

where

N – calculated longitudinal force;

m_g – the coefficient, taking into account the effect of a long load;

m_k – the coefficient of masonry working conditions (m_k = 1 for masonry without damage, m_k = 0,7 with damage);

φ – buckling coefficient, determined by SP.15.13330.2012 «Stone and reinforced stone structures»;

A – sectional area of element;

R_rf – calculated compression resistance of the masonry, reinforced with external reinforcement of CFRP rods or stainless steel helical rods and determined by the formula:

, (2)

ρ – the coefficient depending on the percentage of the masonry void: ρ = 2 – with a stone void up to 20 % inclusive, ρ = 1.5 with a stone void from 20 to 30 % inclusive, ρ = 1 with a void of more than 30 %;

μ – coefficient of surface reinforcement of walls (columns);

R – calculated compression resistance of the masonry, determined by SP.15.13330.2012 «Stone and reinforced stone structures».

If the engineer knows the design tensile resistance of the masonry, he will be able to determine the zones of building structures where the stress exceeds the permissible values. The lack of bearing capacity of the masonry in each finite element must be compensated for by reinforcement with stainless steel helical rods or carbon fiber reinforced polymer (CFRP) rods.

To determine the required number of rods, in each finite element where excess stresses are present, you can use the formula:

 (3)

where

R_bars – the design resistance of the reinforcing material (helical bars or CFRP rods);

R_f – design tensile strength of the bar material.

According to the formulas from SP 15.13330.2012 “Stone and reinforced stone structures” the coefficient of surface reinforcement μ is determined:

 (4)

where

μ  – coefficient of surface reinforcement of walls (columns);

V_bars – sectional area of reinforcement;

V_masonry – cross-sectional area of masonry.

Advantages of rods

The above-described helical rods and carbon fiber reinforced polymer (CFRP) rods have many advantages:

• not subject tocorrosion;
• small indiameter and light in weight;
• work inthe elastic stage of deformation;
• donot reduce the aesthetic qualities of the masonry;
• good chemical resistance;
• possess high mechanical characteristics;
• reduce tensile stresses inmasonry;
• work intension and shear;
• they can beused for any type of

Conclusions

Masonry is widely appreciated all over the world due to various important factors such as durability, availability, bioclimatic characteristics, low cost compared to other materials such as steel and reinforced concrete, but along with these qualities it also has disadvantages, such as the inability to mechanize the masonry process, low labor productivity, large relative mass of structures. Historical buildings and structures built of masonry are an important part of the monuments of world architecture because they are common all over the world. Many of these monuments are on the UNESCO World Heritage List. Reinforcement, including seismic reinforcement of such buildings and structures, can be performed using various methods: both traditional and special. The importance of maintaining their authenticity is of great significance if they are of architectural value. The above method of reinforcing buildings and structures built of masonry with carbon fiber reinforced polymer rods (CFRP) and stainless steel helical rods is ideal from the point of view of maintaining authenticity. The author believes that this method of strengthening (seismic strengthening) of building structures of buildings that are architectural monuments, such as the Great Mosque of Aleppo in Syria, can be used for its restoration, especially since it has not been previously used in this Arab country. Such an innovative method deserves the attention of scientists and engineers around the world for the strengthening and (or) seismic strengthening of many similar buildings and structures built of masonry, taking into account the advantages over other traditional methods.
